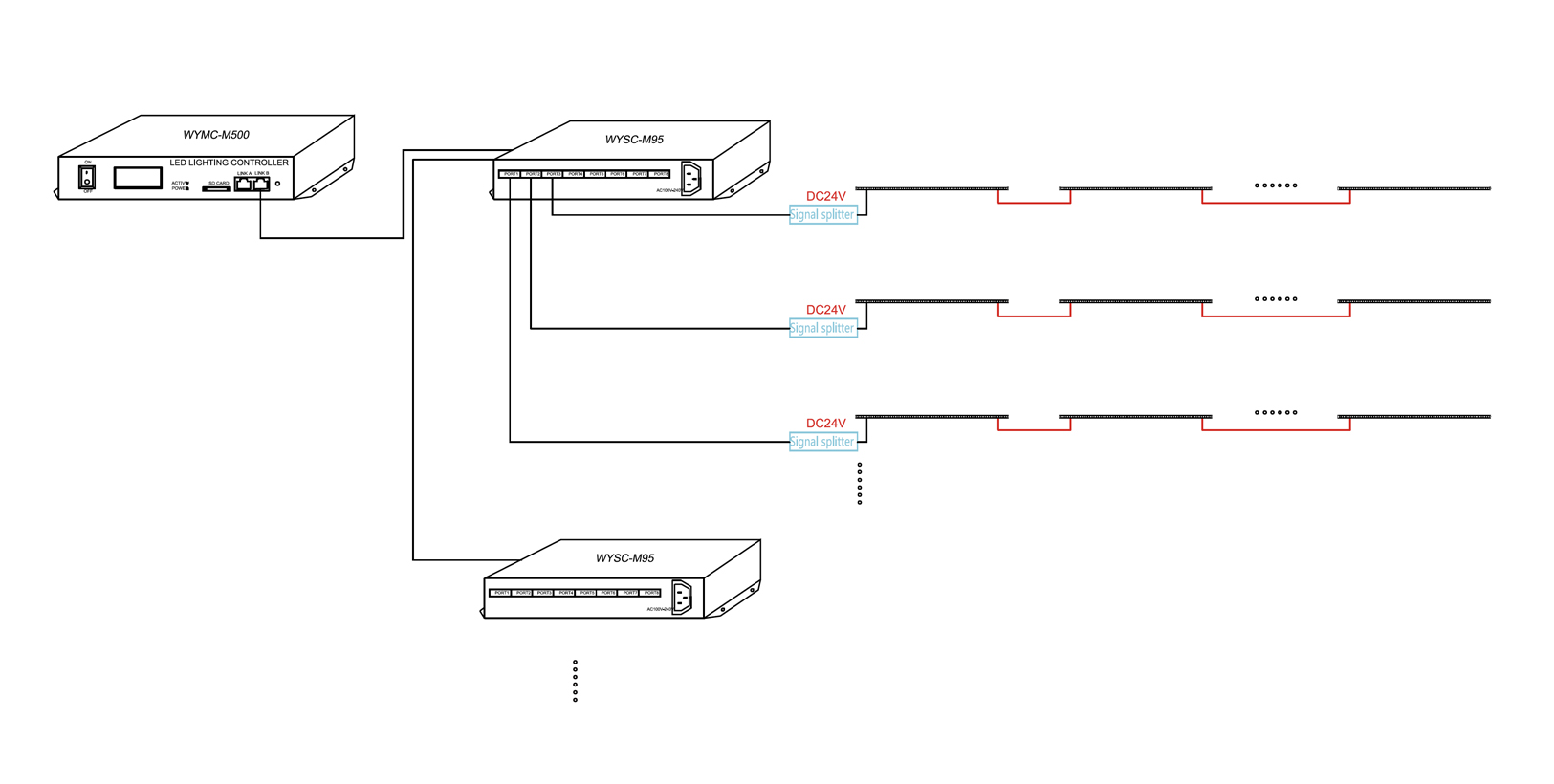

細長的燈體和整潔的外觀確保輕松裝配到外墻, 燈具出線從照明設備的底部，以滿足項目要求的電力電纜。DC24V，確保饋電、信號的有效傳輸，線路損耗低。DMX512調光控制，帶自動編址功能。支架方便安裝以及拆卸，簡化維護難度。

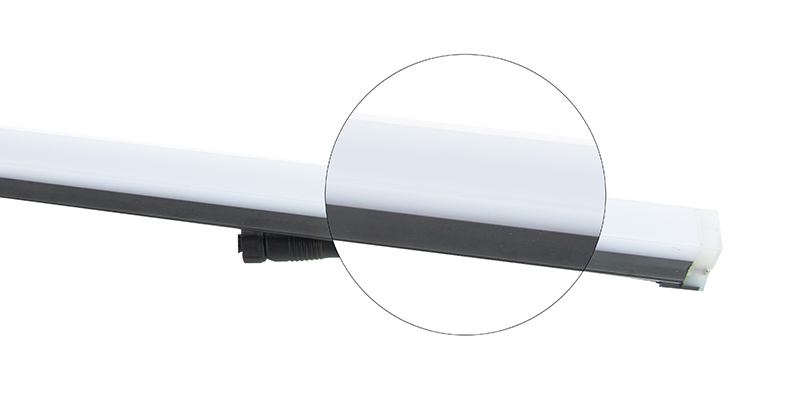

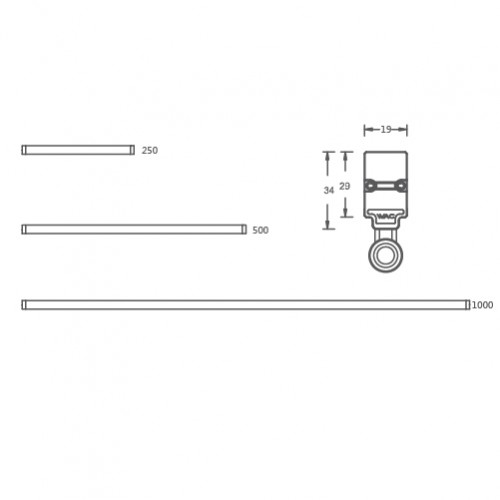

全新雙色一體擠出工藝，流線型設計，整體細長、簡潔、純粹，燈體僅1.9cm寬，2.9cm高，小巧精致，自帶柔性電纜，可輕松裝配到外墻，與樓體建筑巧妙融合。
ACCENT C7三面出光版，無視覺盲區(qū)，可吸引不同方位行人或游客的眼光與腳步。透明端蓋設計，連續(xù)安裝無暗區(qū)，提供更加舒適的視覺效果。
最多可連續(xù)串聯燈具達14米。

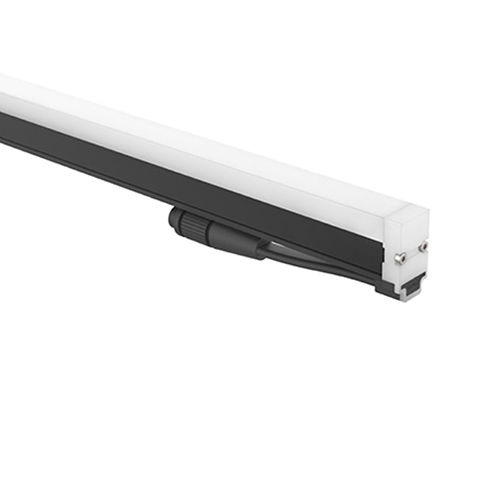

ACCENT C7
南通大劇院
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 24 | 177 | ET ON-OFF 24V DC Powe Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 24 | 177 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 48 | 354 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 48 | 354 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 96 | 709 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 96 | 709 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8Phase | 27 2700K 30 3000K 40 4000K | BK Black |
示例：ELC710-12ET-P027BK
